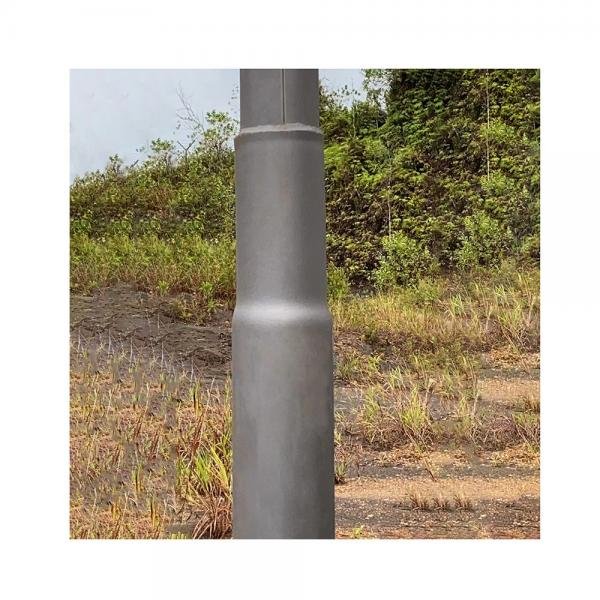

Swaged Poles for reliable lighting and utility applications.
Manufactured for strength, simple installation and long service life, our tubular poles are suitable for street lighting, utility support, industrial premises, campuses and public infrastructure projects.
Practical, strong and cost-effective tubular pole solutions.
Jai shree Engineering Company manufactures High-quality steel (often Hot-Dip Galvanized for corrosion resistance).Ultimate Tensile Strength: 42 kgf/mm².Shape: Stepped round tubular sections of varying diameters and thicknesses.Pole Height: Usually ranges from 7 m to 11 m above ground.Planting Depth: Designed to be buried 1.25 m to 2.0 m into the ground.Weight: Typically between 62 kg to 150 kg+ depending on the height and wall thickness..
These poles can be supplied in swaged, stepped or straight tubular designs with base plates, foundation bolts, bracket arms, junction box arrangements and protective surface finishes. Specifications can be adjusted based on pole height, pipe diameter, wind condition, luminaire load, installation site and project standards.
Strong Pipe Body
MS/GI tubular sections provide dependable strength for outdoor use.
Protected Finish
Galvanized, painted or powder coated options for corrosion protection.
Simple Installation
Base plate and foundation bolt arrangement for practical site work.
Custom Sizes
Height, pipe diameter, wall thickness, bracket and finish can be matched to project needs.
Technical details in a clear table format.
Values below are standard/typical ranges. Final dimensions can be customized as per project drawings, wind load and client requirement.
General Specification
| Product Name | Swaged Pole |
|---|---|
| Material | Mild Steel / GI pipe / steel tube as per project requirement |
| Pole Shape | Round tubular / swaged tubular / stepped tubular profile |
| Height Range | 3 meter to 11 meter, customizable |
| Pipe Diameter | As per design, commonly 60 mm to 165 mm sections |
| Thickness Range | 2 mm to 5 mm, based on height, diameter and load requirement |
| Mounting Type | Base plate mounted with foundation bolt set |
| Surface Finish | Hot dip galvanized / powder coated / painted finish |
| Application | Street lighting, utility support, parks, colonies, industrial areas and public spaces |
Indicative Size Chart
| Pole Height | Typical Pipe Section | Mounting | Recommended Use |
|---|---|---|---|
| 3 m to 5 m | 60 mm to 90 mm dia. | Base plate / direct burial | Garden, pathway and small campus lighting |
| 6 m to 8 m | 90 mm to 114 mm dia. | Base plate / foundation | Street, colony and industrial lighting |
| 9 m to 10 m | 114 mm to 140 mm dia. | Base plate / foundation | Main roads, yards and commercial areas |
| 11 m to 12 m | 140 mm to 165 mm dia. | Heavy-duty base plate | Highway and large-area lighting |
Accessories and Supply Options
| Bracket Arm | Single arm, double arm, decorative arm or custom arm arrangement |
|---|---|
| Foundation Bolts | Supplied as per base plate and site requirement |
| Junction Box | Optional cut-out, inspection window or cover plate for cable connection |
| Mounting Type | Base plate mounted, flange mounted or direct buried options |
| Customization | Height, pipe diameter, thickness, base plate, PCD, bolt size, color, arm design and finish can be customized |
Manufacturing support focused on quality and project practicality.
Quality Material
Material and fabrication are selected for strength and long-term outdoor use.
Custom Manufacturing
Dimensions, finish and fittings can be adjusted to match your project needs.
Reliable Finish
Galvanized and painted finish options help protect against weather exposure.
Project Supply
Responsive coordination for quotation, manufacturing and dispatch planning.
